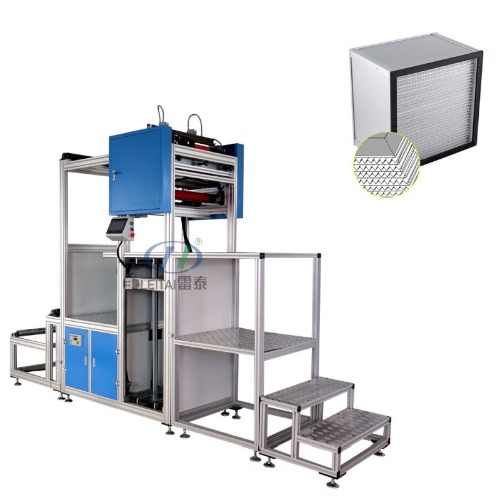

LTYG-800N Glass Fiber Origami Production Line Partition Machine测试

LTYG-800N Glass Fiber Origami Production Line Partition Machine测试



  • Item No :

    LTYG-800N Glass Fiber Origami Production Line With Partition
  • Order(MOQ) :

    1 SET
  • Payment :

    TT
  • Product Origin :

    BENGBU, ANHUI
  • Color :

    Blue
  • Shipping Port :

    SHANGHAI
  • Lead Time :

    AROUD 30 WORKING DAYS
  • Weight :

    850KG

1.The production line adopts imported slitting knives, the slitting surface is flat, no burrs.

2.The production line is driven by high-precision servo motors, which ensures the superior performance of the equipment.

3.A marking blade is installed on the left and right side, realizing stepless adjustment of folding height.

4.The lifting platform automatically descends slowly with the number of folds until it reaches the set product height.

Capacity 5-10 pleat/min
Product Max Width 800mm
Product Max Origami Height 300mm
Product Max Height

900mm

Raw Material Roll Diameter

800mm

Motor Power 1.5kw
Supply Voltage 220V/50Hz
Air Pressure 0.6Mpa
Net Weight 850kg
Overall Dimension 4290x1900x2500mm









Bengbu Letai Filter Equipment Co.,Ltd is a professional company specializing in the development,design,production and sales of filter equipment.

The main products are hosuhole purification,industrial purification,water filtration,dust filtration,industry without partition,with partition filter production

equipment.The main equipment is automatic 300 folding height no partition origami production line,high  temperature and high temperatuyre resistant

 glass fiber origami production lin,automatic knife origami production line,PP origami gluing high folding high climbing gluing production line,automatic

air conditioning filter element welt fitting machine,origami machine and so on. The company has senior technical personnel with more than 10 years of

rich experience,the development of more than 30 kinds of product.And will further develop advanced,practical and efficient models accoring to the actual

production in the industry,pay attention to the domestic and international trends,and make relevant contributions to the filtration and filter industry in China and the world.







10000 square meters work shop

The factory has sufficient stock supply

24 hours technical and after sales service

Professional maintenance and provision of various accessories
