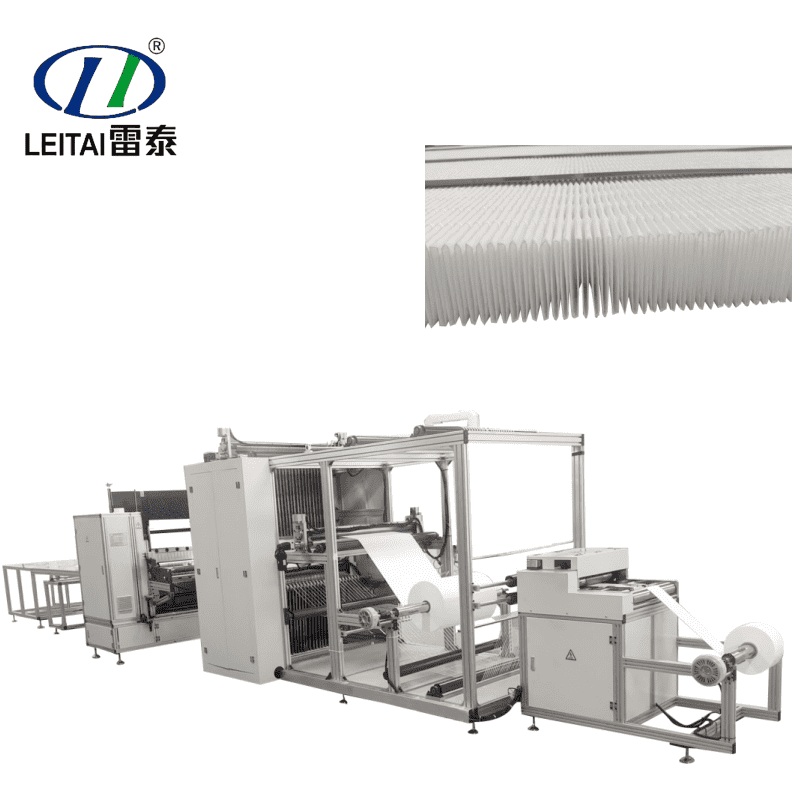

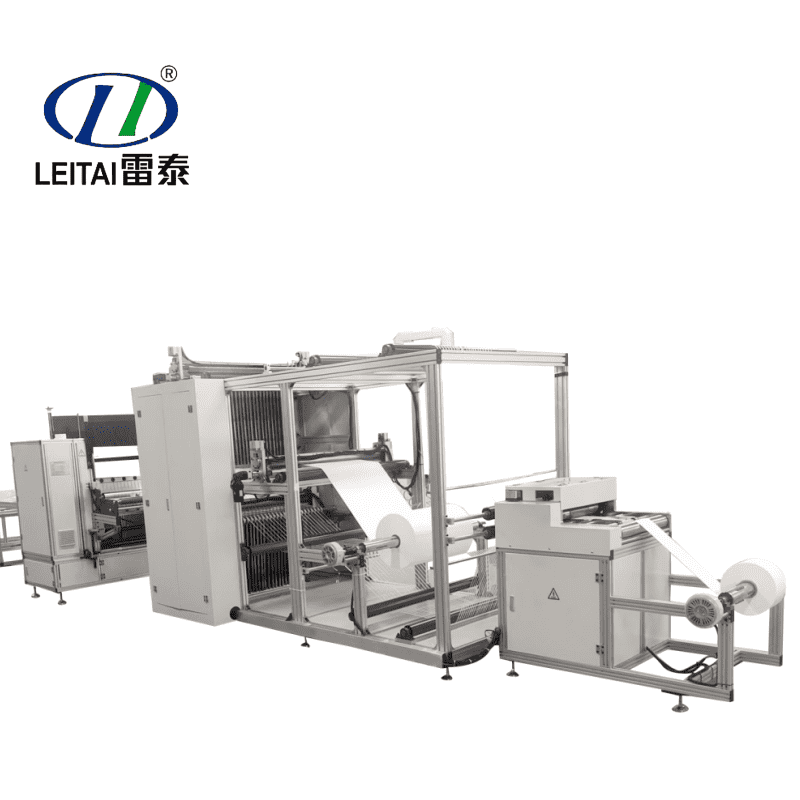

LTNWG-1050 Full Auto High-Temperature Resistant Paper Folding Production Line

LTNWG-1050 Full Auto High-Temperature Resistant Paper Folding Production Line

  • Item No :

    LTNWG-1050
  • Order(MOQ) :

    1
  • Payment :

    T/T
  • Product Origin :

    BENGBU, ANHUI
  • Color :

    White
  • Shipping Port :

    SHANGHAI
  • Lead Time :

    AROUD 30 WORKING DAYS
  • Weight :

    2000KG

1.The production line is our own intellectual property rights, self-developed and produced with international standards of advanced production equipment,

   can be produced within a certain width and height of any height of products without mechanical adjustment, as long as the operator input the required height,

   you can produce products to meet the requirements.

2.Meanwhile, it is equipped with international advanced functions such as slitting, folding and shaping, which greatly improves the practicality of the equipment

   and the stability of product quality.

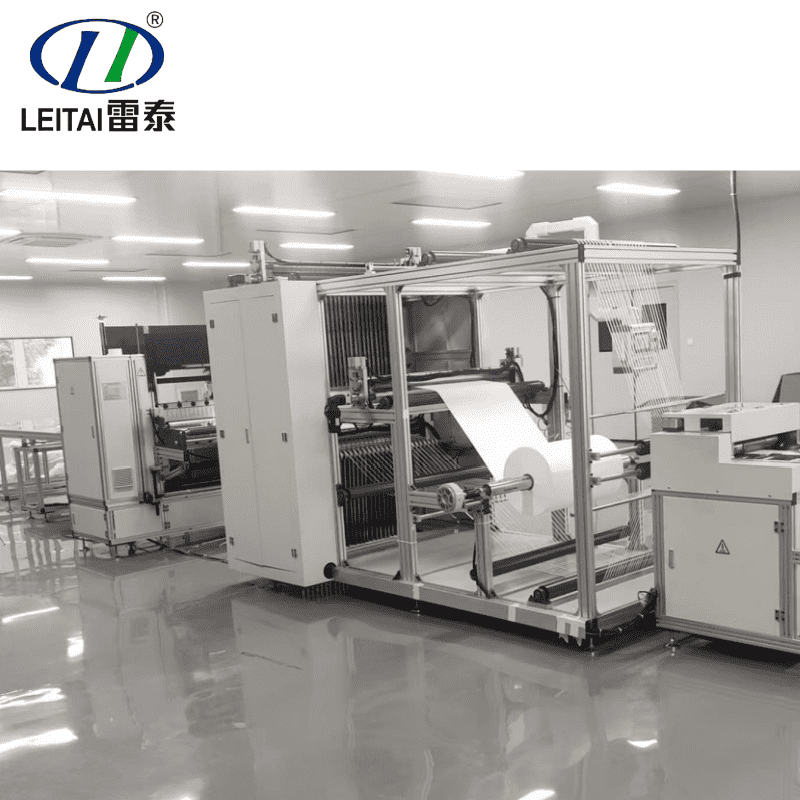

3.The production line consists of six main parts: feeding mechanism, slitting mechanism, folding mechanism, shaping mechanism, conveyor belt mechanism and

   touch screen control system.

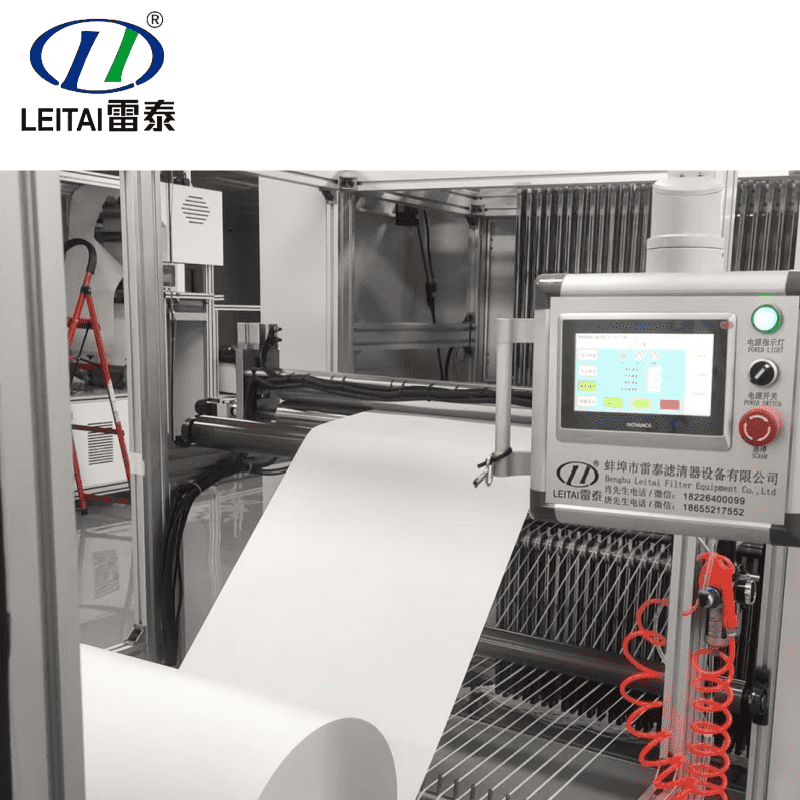

4.The paper folding machine operating system adopts touch screen interface, which makes the operation intuitive and simple.

5.The paper folding machine has a modern monitoring system and the servo motor drive makes the folded products precise in size and flat as one.

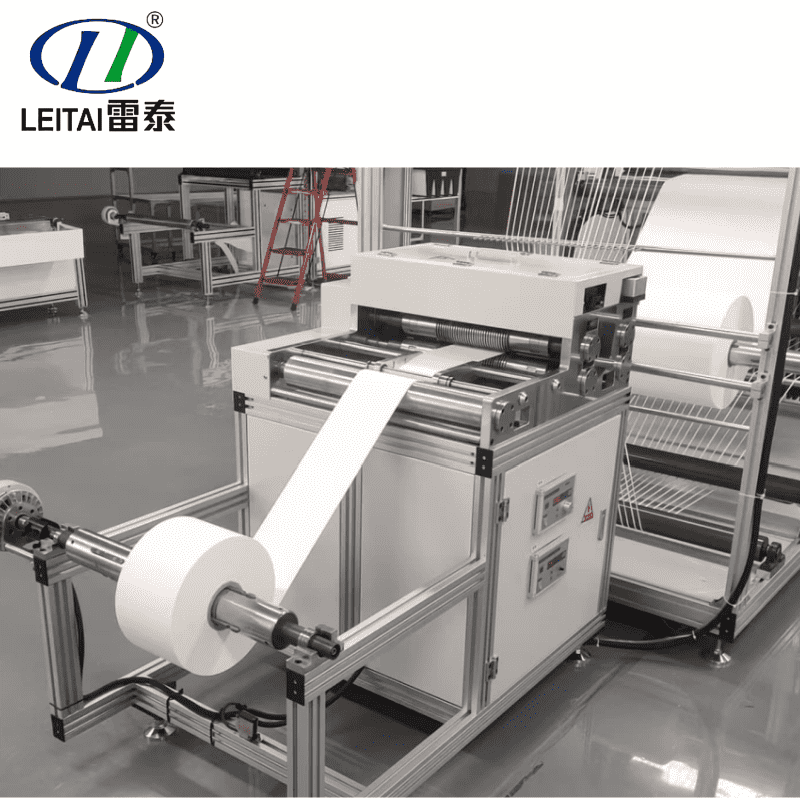

Slitting Raw Material Roll Diameter

900mm

 Slitter Material Width

≤500mm

Number Of Slits 65pcs (Can be customized)
Width Of Slits 4mm (Can be customized)
Raw Material Roll Diameter 900mm
Raw Material Roll Width ≤1050mm
Folding Width ≤1000mm
Folding Speed 80 fold/min
Folding Range 20-120mm

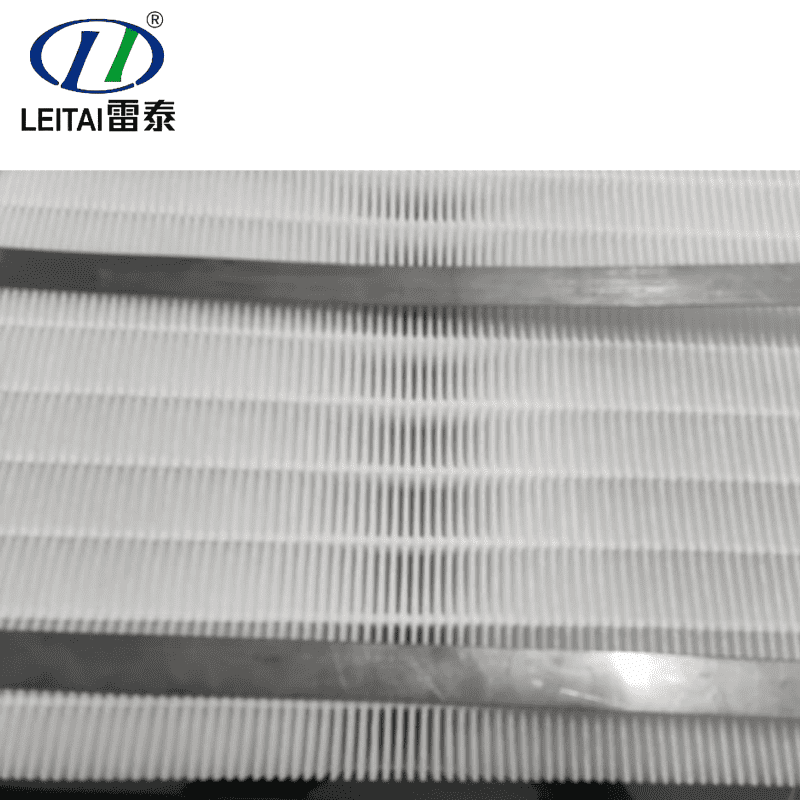

Spacing Between Strips After Folding 38mm(Can be customized)
Total Rate 6.5kw
Supply Voltage 380V/50Hz
Air Source 0.6Mpa
Overall Dimension 9950x2560x2200mm
Net Weight

2000kg









Bengbu Letai Filter Equipment Co.,Ltd is a professional company specializing in the development,design,production and sales

of filter equipment.The main products are hosuhole purification,industrial purification,water filtration,dust filtration,industry

without partition,with partition filter production equipment.The main equipment is automatic 300 folding height no partition

origami production line,high  temperature and high temperatuyre resistant glass fiber origami production line,automatic knife

origami production line,PP origami gluing high folding high climbing gluing production line,automatic air conditioning filter element

welt fitting machine,origami machine and so on. The company has senior technical personnel with more than 10 years of rich

experience,the development of more than 30 kinds of product.And will further develop advanced,practical and efficient models

acording to the actual production in the industry,pay attention to the domestic and international trends,and make relevant contributions

to the filtration and filter industry in China and the world.

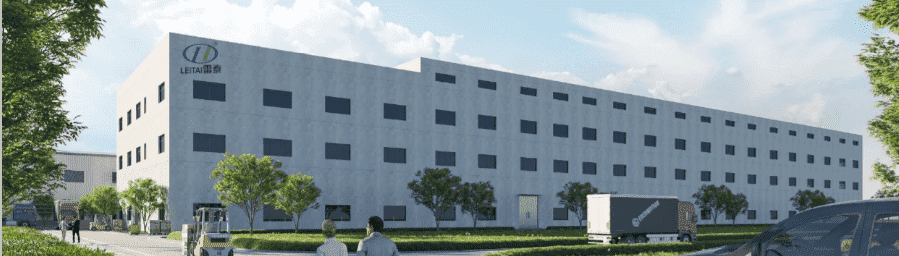

10000 square meters work shop

The factory has sufficient stock supply

24 hours technical and after sales service

Professional maintenance and provision of various accessories
