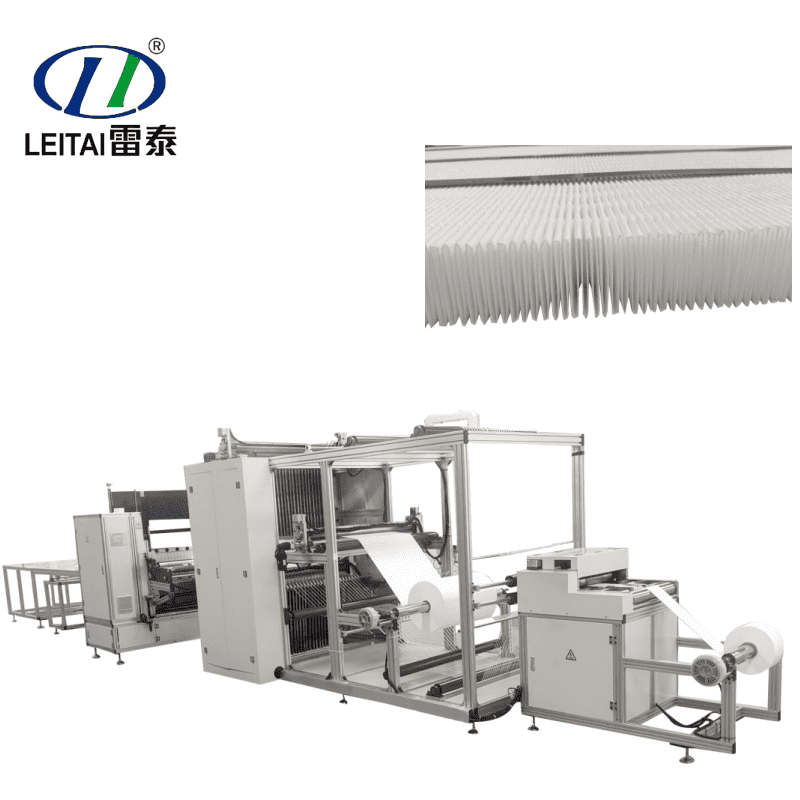

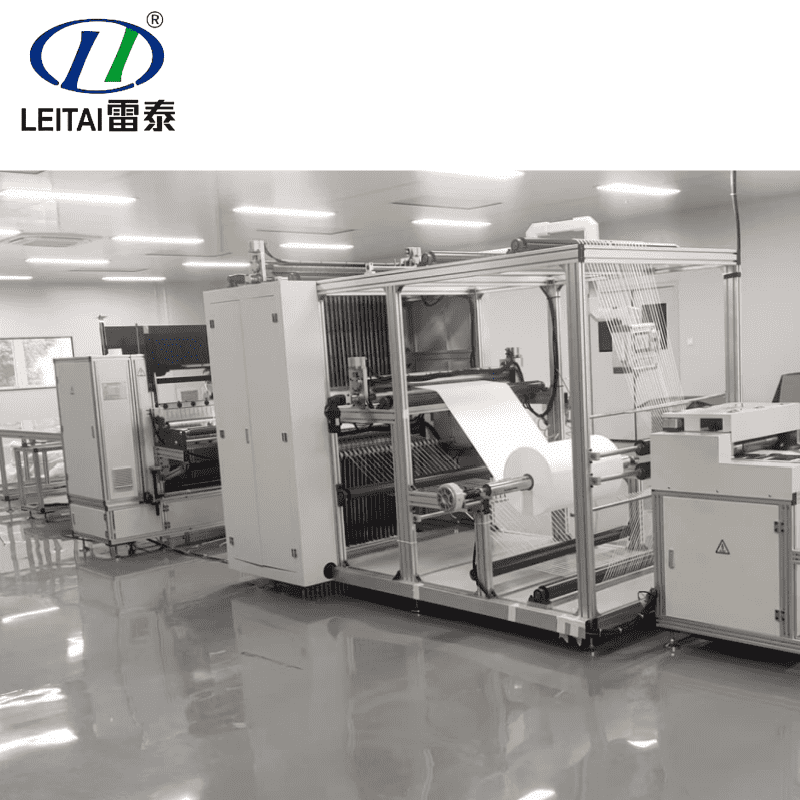

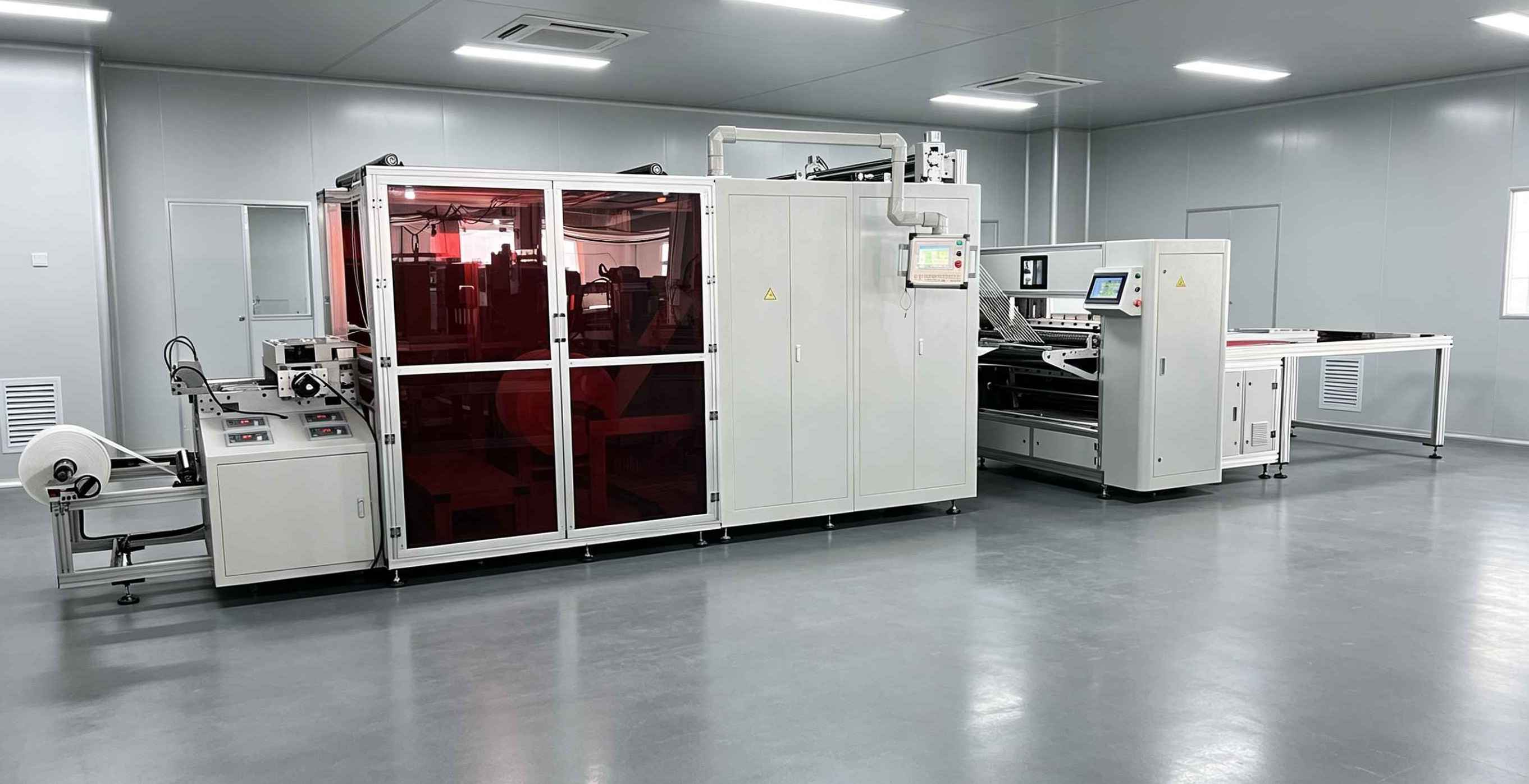

LTNWG-1050 High Temperature Resistant Glass Fiber Wire Paper Pleating Production Line
The production line is our own intellectual property rights, self-developed and produced with international standards of advanced production equipment, can be produced within a certain width and height of any height of products without mechanical adjustment, as long as the operator input the required height, you can produce products to meet the requirements.
Item No :
LTNWG-850/1050Order(MOQ) :
1 SETPayment :
T/TProduct Origin :
BENGBU,ANHUIColor :
BLUE，CUSTOMIZATIONShipping Port :
SHANGHAILead Time :
AROUND 30-45 DAYSWeight :
2000KGPRODUCT DESCRIPTION
1.The machine can produce products of any height within a certain width and height range without mechanical adjustment, as long as the required height is entered through the operating table, the products can be produced to meet the requirements.

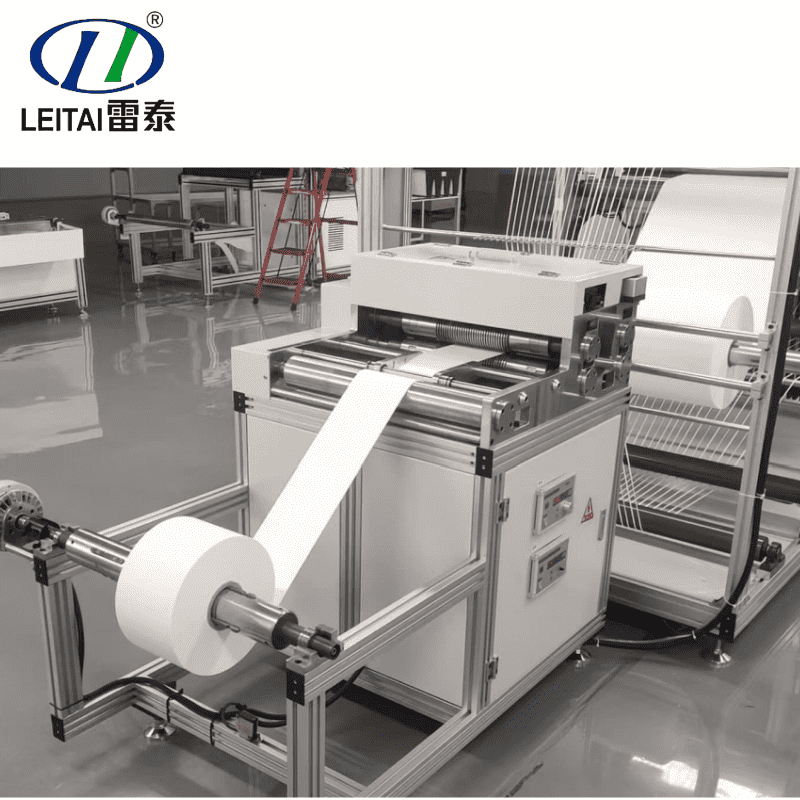

2.The equipment is equipped with internationally advanced functions of slitting, folding and shaping, which greatly improves the practicality of the equipment and the stability of product quality.

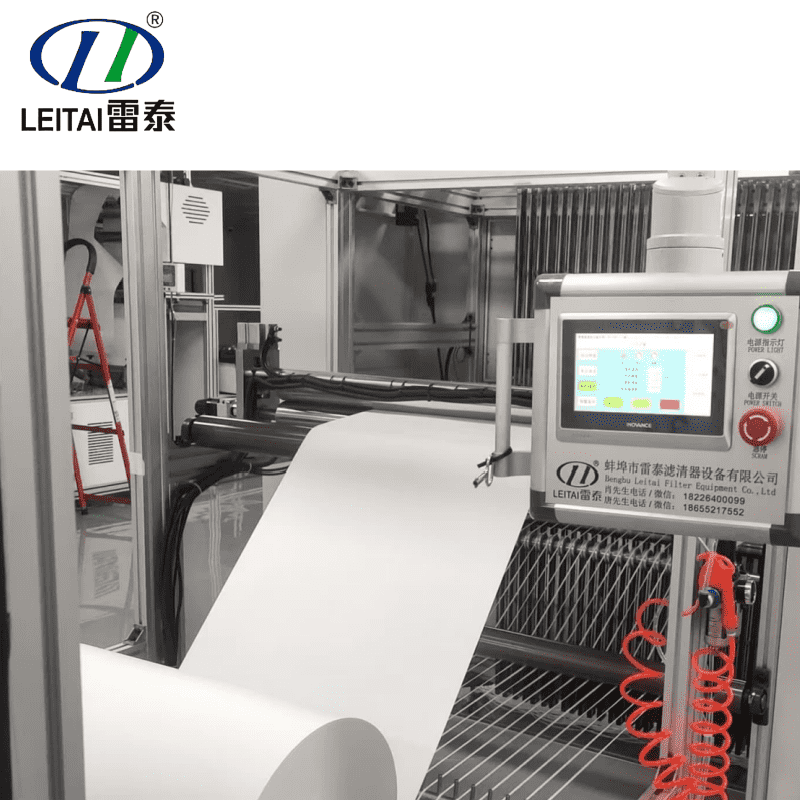

3.The paper folding machine operating system adopts touch screen interface, which makes the operation intuitive and simple.
4.The paper folding machine has a modern monitoring system and the servo motor drive makes the folded products precise in size and flat as one.

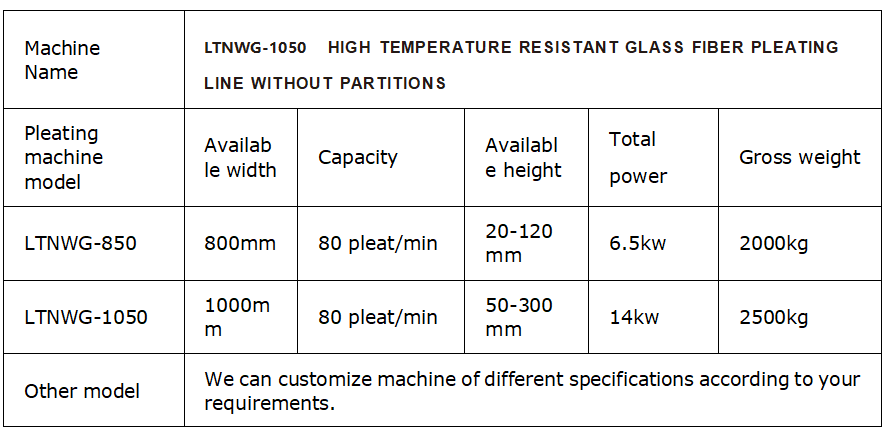

PRODUCT SPECIFICATIONS
| Slitting Of Raw Material Roll Diameter |
≤900mm |
≤900mm |
| Width Of Slitting Material |
≤500mm |
≤500mm |
| Number Of Slits |
65 pcs (Can be customized) |
65 pcs (Can be customized) |
| Width Of Slits |
4mm (Can be customized) |
4mm (Can be customized) |
| Raw Material Roll Diameter |
≤900mm |
≤900mm |
| Raw Material Width |
≤1050mm |
≤850mm |
| Folding Width |
≤1000mm |
≤800mm |
| Folding Speed |
80 pleat/min (Can be customized) |
80 pleat/min (Can be customized) |
| Folding Height Range |
20—120mm |
20—120mm |
| Spacing Between Strips After Folding |
38mm (Can be customized) |
38mm (Can be customized) |
| Total Power |
6.5KW |
6.5KW |
| Supply Voltage |
380V/50Hz |
380V/50Hz |
| Air Source |
0.6MPa |
0.6MPa |
| Overall Dimension |
9550mmX2560mmX2200mm |
9550mmX2360mmX2200mm |
| Net Weight |
2000KG |
2000KG |
PACKAGING

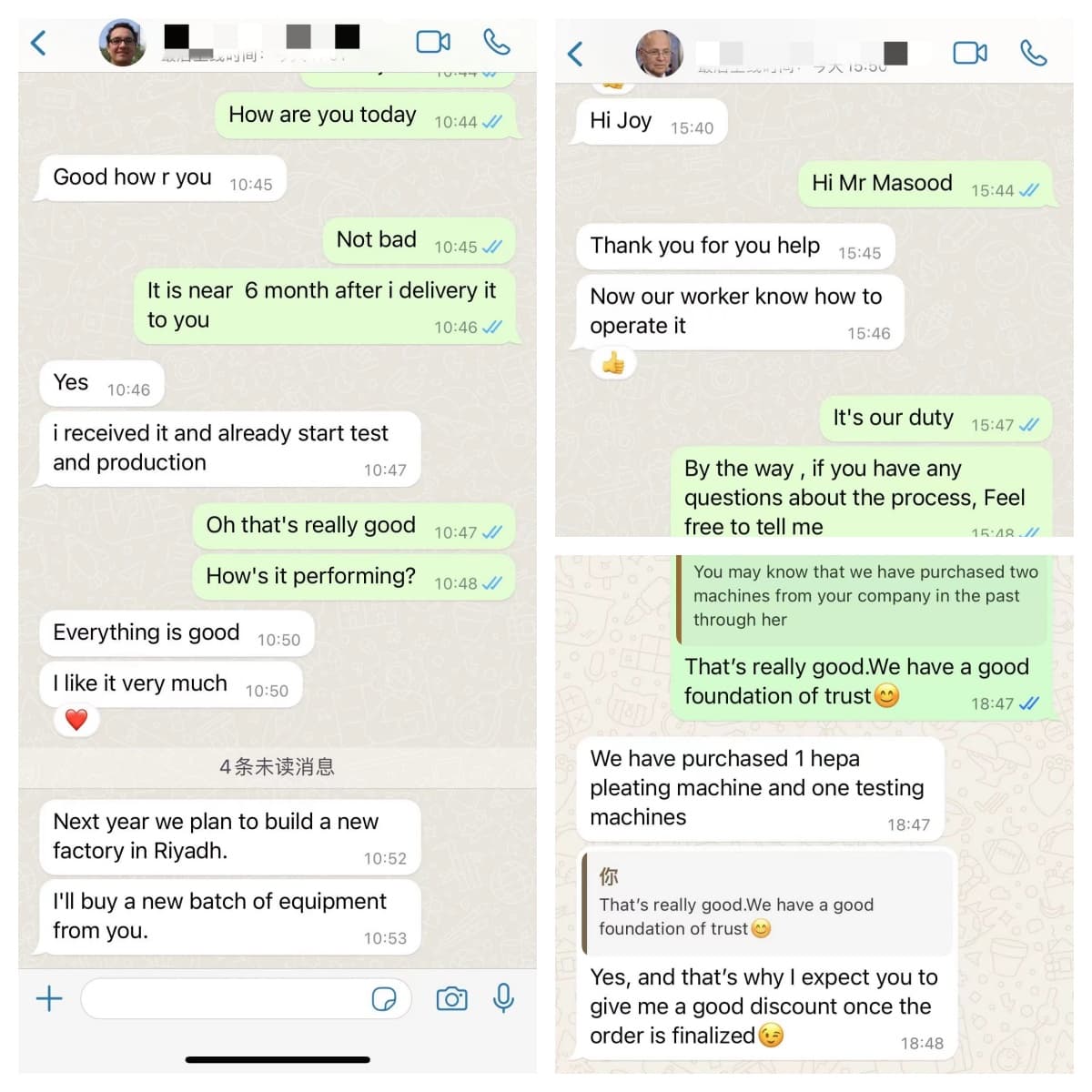

CLIENTS COMMENTS
ABOUT US
Bengbu Letai Filter Equipment Co.,Ltd is a professional company specializing in the development,design,production and sales of filter equipment.The main products are hosuhole purification,industrial purification,water filtration,dust filtration,industry without partition,with partition filter production equipment.The main equipment is automatic 300 folding height no partition origami production line,high temperature and high temperatuyre resistant glass fiber origami production line,automatic knife origami production line,PP origami gluing high folding high climbing gluing production line,automatic air conditioning filter element welt fitting machine,origami machine and so on. The company has senior technical personnel with more than 10 years of rich experience,the development of more than 30 kinds of product.And will further develop advanced,practical and efficient modelsacording to the actual production in the industry,pay attention to the domestic and international trends,and make relevant contributionsto the filtration and filter industry in China and the world.
WHY CHOOSE US

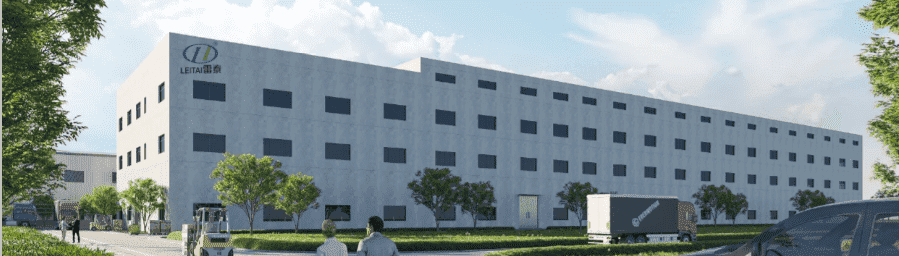

10000 square meters work shop
