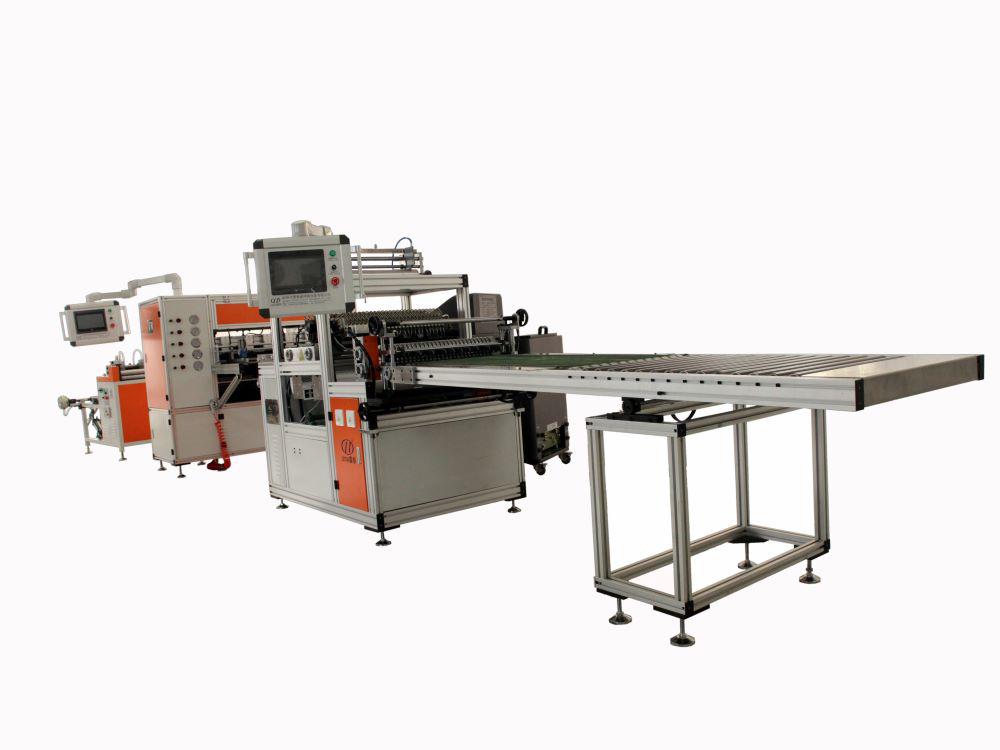

LTPP-700 automatic PP gluing machine

The production line is also equipped with a cooling system that immediately solidifies the adhesive after the product is glued, making it easier to cut the product. At the same time, the use of longer conveying mechanisms to meet the cutting needs of products of different lengths has improved the flexibility and adaptability of the production line.

The parts of the glue spraying mechanism are precision machined to ensure consistent thickness of the sprayed glue line, ensuring the stability of product quality. The fully automatic PP gluing production line adopts integrated control technology of machine, electricity, and gas, with high production efficiency. Easy to operate, stable and reliable, very suitable for the production of household purifier filters.

At the same time, each glue nozzle is controlled by an independent solenoid valve, which can spray glue according to the needs of different width products, and the glue line thickness is uniform and consistent. This unique design makes the product more uniform and of high quality during the production process.

This product is developed and produced by our company with our own intellectual property rights, possessing advanced production capabilities at an international level. It can produce products of any height that meet the requirements within a certain width range by simply adjusting the machinery. This flexibility and convenience make the production process more efficient and ensure product compliance.

In summary, this fully automatic PP gluing production line adopts advanced technology and design, with the advantages of high efficiency, simple operation, and reliability. It is an advanced equipment developed and produced by our company with independent intellectual property rights, which achieves high quality and efficiency in production while meeting requirements.

2、 Technical parameters:

(1) Feeding speed: 20 meters/min (based on folding height)

(2) Material width: ≤ 700mm

(3) Number of injection lines: 26X2

(4) Glue line spacing: 25.4mm

(5) Injection method: injection molding

(6) Folding height range: 20-100mm

(7) Machine motor power: 1.5KW

(8) Hot melt adhesive machine power: 15KW

(9) Hot melt glue machine: 50 liters

(10) Sol speed: 45KG/h

(11) Power supply voltage: 380V/50Hz

3.Main component configuration of production line

1) Worm gear reduction motor adopts 2 sets of well-known domestic brands

2) The frequency converter adopts 2 sets of well-known domestic brands

3) One set of hot melt adhesive machine from a well-known domestic brand

4) Number of spray nozzles 36X2 sets

5) The sensor adopts Omron brand

6) Electric control buttons and other electrical appliances are all from well-known domestic brands

7) Pneumatic components such as cylinders, solenoid valves, and pneumatic triplets are all made by Taiwan's Yadeke brand
