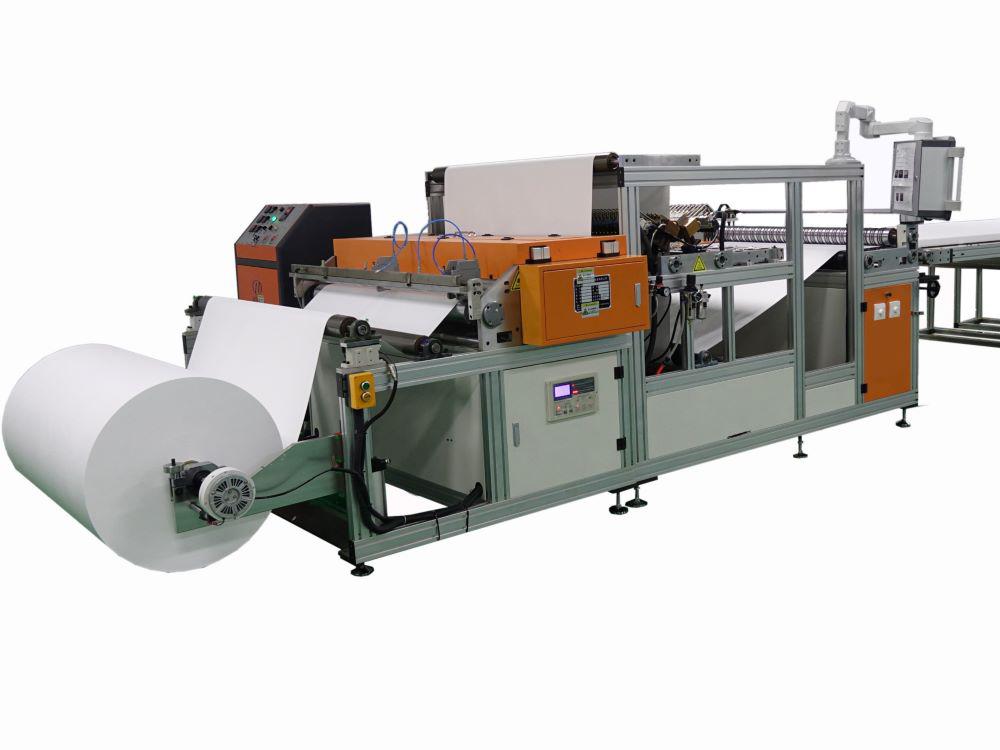

LTWG-900N automatic non-partition gluing machine

The LTWG-900N fully automatic non partition air filter production line is a revolutionary equipment designed by our company after long-term research and development, using the latest integrated control technology of machinery, electricity, and gas. The characteristics of this production line are high efficiency, simple operation, stability and reliability, specifically designed for the folding and gluing of glass fiber air filter cores without partitions.

The feeding process of this production line adopts cylinder vertical lifting technology, which significantly reduces the labor level of workers and greatly improves production efficiency. At the same time, the unwinding process is innovatively designed through tension control, which effectively controls the unwinding tension and ensures the stability of product quality.

In order to meet the needs of products with different widths, each spray nozzle of the production line is controlled by an independent solenoid valve, which can achieve precise spraying and consistent thickness of the glue line. This unique design makes the product more uniform and of high quality during the production process.

It is worth mentioning that the equipment is fully developed and produced by our company's independently owned intellectual property rights, with advanced production capabilities at the international level. It can produce products that meet the requirements immediately within a certain width range according to the required height input from the console, without the need for tedious mechanical adjustments, greatly improving production efficiency and flexibility.

In addition, the production line also integrates internationally advanced intermittent glue coating and counting broken glue functions, further enhancing the practicality of the equipment and the stability of product quality, ensuring high-quality filter output.

In summary, the introduction of the LTWG-900N fully automatic non partition air filter production line not only leads the international level in technology, but also significantly improves production efficiency, bringing excellent competitive advantages to filter manufacturers. The excellent performance and reliability of this device make it the preferred production equipment in the industry.

• Main component configuration of the machine

1. The servo motor adopts INOVANCE Huichuan AC servo system, 3 sets
2. Three sets of high-precision planetary gearboxes from Shanghai Fenghua brand
3. One set of touch screen from INOVANCE Huichuan brand
4. PLC control adopts one set of INOVANCE Huichuan series products
5. One set of hot melt adhesive machine from a well-known domestic brand
6. Number of spray nozzles 36X2 sets
7. The sensor adopts Omron brand
8. Pneumatic components such as cylinders, solenoid valves, and pneumatic triplets are all made by Taiwan's Yadeke brand
9. Transmission components such as couplings and synchronous belts are all well-known domestic brands
10. The linear guide rail is from Taiwan's Shangyin brand
11. One set of tension control system from a well-known domestic brand
12. The bearings are all made of well-known domestic brand Harbin bearings
13. All small electrical appliances use well-known domestic brands
14. The steel parts on the production line are treated with surface treatments such as hard chrome plating, decorative chrome plating, and blackening, while the aluminum parts are treated with anodizing or cathodic oxidation
15. The main frame of the production line is made of high-strength aluminum profiles
16. The production line's door panels, sealing plates, and cover sheet metal, as well as cold-rolled plates, are all treated with spray coating, and the stainless steel is 304 natural color
